Fisherman Drone 1

INTRODUCING THE FISHERMAN DRONE 1 - FD1

A DRONE MADE SPECIFACLLY FOR FISHING!

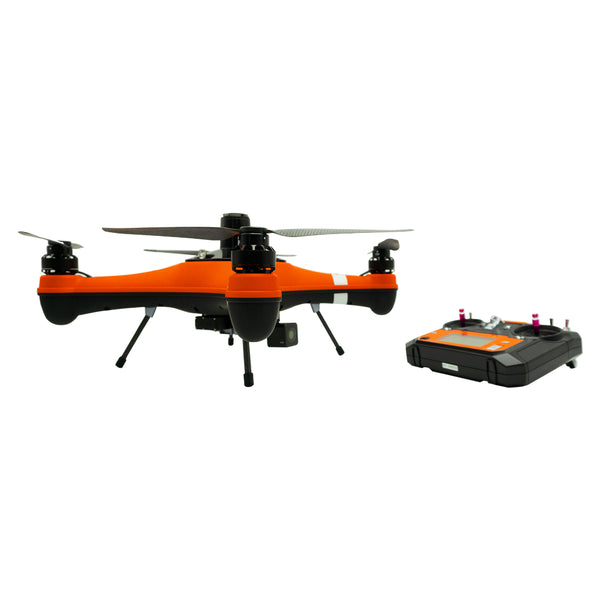

FD1 fishing waterproof drone whats in the box

THE FD1 IS THE ONLY WATERPROOF FISHING DRONE ENGINEERED TO DELIVER YOUR BAITS AND LONG LINES UP TO 1.6 KM.

THE FISHERMAN MEANS YOU DON’T NEED A BOAT TO GET TO THE BEST COASTAL FISHING SPOTS. SHORE-BASED ANGLERS CAN DRAMATICALLY EXTEND THE CASTING RANGE AND DROP MULTIPLE BAITS UP TO 2KG (4.4 POUNDS) AT ONCE.

Fd1 swellpro fishing drone landing on water

THE FD1 IN AN ENTRY LEVEL DRONES FOR THOSE WHO WANT ALL THE BASIC FUNCTIONS OF A FISHING DRONE AT A LOW PRICE.

4.4 POUNDS BAIT CAPACITY

WITH ITS SUPERIOR 4.4 POUNDS BAIT CAPACITY, THE SWELLPRO FISHERMAN GIVES YOU THE FLEXIBILITY TO CARRY MORE THAN 10 BAITED HOOKS OR LURES ON EACH CAST OR DROP HEAVY LIVE BAITS FOR SHARKS OR TUNA.

FD1 fishing drone dropping bait

PAYLOAD RELEASE OPTIONS

THE FISHERMAN FD1 DRONE OFFERS TWO OPTIONAL ELECTRIC PAYLOAD RELEASE MECHANISMS. REMOTELY AND PRECISELY DROP BAITS AT THE TARGET LOCATION WITH PUSH-BUTTON CONVENIENCE.

PL1-F BAIT RELEASE. MECHANICAL PAYLOAD RELEASE WITHOUT CAMERA FOR SIMPLE CASTING.

PL1F drone bait release for swellpro drone

PL2-F PAYLOAD RELEASE WITH A MANUAL ANGLE-ADJUSTABLE CAMERA FOR REAL-TIME VISION. WITH THE OPTIONAL FPV GOGGLES, YOU CAN VIEW LIVE HD VIDEO FROM THE PL2-F TO EASILY SCOUT WHERE THE FISH ARE. THE CAMERA’S WIDE DYNAMIC RANGE MAXIMIZE DETAILS IN SUN-GLARE.

PL2F bait release for Swellpro Fishing Drone

SKY-TROLLING

YOU DON’T NEED TO DRIVE A BOAT TO TROLL FOR FISH. WITH THE SWELLPRO FISHERMAN, YOU CAN TROLL YOUR LINE TO ATTRACT PELAGIC FISH. THE OPTIONAL TROLLSAFE RELEASE DEVICE CAN AUTOMATICALLY RELEASE THE LINE WHEN YOU GET A STRIKE. ADJUST THE RELEASE TO SUIT THE CONDITIONS. TROLLSAFE CAN ALSO PROTECT YOUR DRONE IN CASE OF A REEL JAM OR A BIRD STRIKING YOUR LINE.

FD1 fishing drone trolling on water

FD1 Trollsafe

TROLLSAFE RELEASE DEVICE (OPTIONAL)

THE TROLLSAFE CAN BE DIRECTLY MOUNTED ONTO THE SWELLPRO FISHERMAN OR USED IN CONJUNCTION WITH PL1-F AND PL2-F.

FD1 waterproof fishing drone landing on water

IP67 SEAWATER PROOF

THE FUSELAGE OF THE SWELLPRO FISHERMAN IS MADE FROM INDUSTRIAL-GRADE ABS AND IS 100% WATER-SEALED AND PRESSURE-TESTED.

BOTH THE EXTERNAL WATERPROOF MOTORS AND INTERNAL ELECTRONICS ARE COATED FOR FURTHER CORROSION RESISTANCE.

AFTER DROPPING YOUR BAITS, SIMPLY FLICK THE RETURN-HOME SWITCH ON THE REMOTE AND THE SWELLPRO FISHERMAN WILL FLY ITSELF BACK TO ITS TAKE-OFF POINT AND GENTLY LAND AUTOMATICALLY SO YOU CAN FOCUS ON REELING THE FISH IN!

Fishing Drone FD1 Swellpro Return to home

INTELLIGENT RETURN HOME

AFTER DROPPING YOUR BAITS, SIMPLY FLICK THE RETURN-HOME SWITCH ON THE REMOTE AND THE SWELLPRO FISHERMAN WILL FLY ITSELF BACK TO ITS TAKE-OFF POINT AND GENTLY LAND AUTOMATICALLY SO YOU CAN FOCUS ON REELING THE FISH IN!

FD1 fishing waterproof drone flight control

ANTI-PENDULUM FEATURE

DRONES MAY HAVE A PENDULUM MOTION WHEN FLYING WITH A PAYLOAD. THIS FEATURE CAN REDUCE THE PENDULUM EFFECT ON THE FISHERMAN BY CONTROLLING THE ACCELERATION AND DE-ACCELERATION.

Waterproof fishing drone battery feature

FAILSAFE RETURN

IN CASE OF LOSS OF SIGNAL, OR WHEN THE BATTERY LEVEL REACHES A LOW THRESHOLD, THE FISHERMAN DRONE WILL AUTOMATICALLY RELEASE THE FISHING LINE AND RETURN TO ITS STARTING POINT.

Waterproof drone GPS swellpro FD1

NEW INTERFERENCE-RESISTANT GPS & ALTIMETER DESIGN

THE NEW ELEVATED GPS AND ALTIMETER POD PROVIDES MORE PRECISE POSITION AND ALTITUDE CONTROL AGAINST INTERFERENCE. THE NEW POD ALSO MAKES SURE THE COMPASS ALWAYS “GO NORTH” IN UNUSUAL MAGNETIC FIELDS.

FD1 fishing drone bait release waterproof

GL1 FPV GOGGLES (OPTIONAL)

THE OPTIONAL FPV GOGGLES CAN BE USED AS A DISPLAY SCREEN OR ON-FACE GOGGLES TO ENSURE A CLEAR LIVE VIEW FROM THE FISHERMAN EVEN IN BRIGHT SUNLIGHT

Fisherman FD1 Specs

Aircraft

Waterproof Rating: IP67

Drone Weight（include battery and propellers): 2050g

Axis Diameter: 450 mm

Max Ascend Speed: 4 m/s

Max Descent Speed: 4 m/s

Max Flight Speed: 10 m/s（GPS); 22 m/s（ATTI)

Max Tilt Angle: ATTI Fast Mode 25°；ATTI Slow Mode 12.5°

Max Altitude from Takeoff Point: 120 m (GPS) / 1.3 km (ATTI)

Max Wind Speed Resistance: 72km/h | 20 m/s | 39knot

Hovering Accuracy: ±0.5m

Max Flight Time: 30 mins (no wind & no load); (approx. 15 mins with 1.0kg, approx.12 mins with load of 1.5kg)

Max Flight Distance: 1.6 km

Max Payload Capacity: 2.0 kg

Satellite Positioning Systems: GPS/GLONASS

Flight Control: Hawk

Motor: #3509/740Kv

ESC: 40A (flux)

Propeller: #1242 carbon fiber quick release propellers

Working Temperature: -10℃ ~ 40℃

Battery Type: 4S 15.2V 6500mAh Lipo

Battery Weight: 640g

Charging Time: 90 min

Remote Control

Weight: 378 g (without battery）

Size: 174x89x190 mm

Frequency: 2405 – 2475 MHz

Band Wide: 5000 KHz

Coding Mode: GFSK

Effective Distance: 1.3 km (No interference, open area)

Receiving Sensitivity: -105dBm

Transmitting Power: Less than 20dBm

Channel: 6

Battery Type: 6V (1.5V AAx4)

PL1-F

Waterproof: IP67

Max Payload Weight: 2kg

Size: 60.7*36.2*50mm

Cable Length: 220mm

Weight: 90g

PL2

Video Link

Frequency:5645 ~ 5965MHz

Channel: 40CH

Transmission Distance: 1.6km (No obstacles, no interference)

Power: 25/400/600mW

Input Voltage: 7.4~26V

Size: 32*25*10.4mm(天线140mm)

Weight: 12.8g

Dual Usage FPV screen & goggle - GL1

Screen Size: 5"

Resolution: 800 * 480

Display Scale: 16：9

Brightness: 300cd /m²

Latency: <20ms

Lens: 8 times Fresnel lens, light transmittance 92%, no distortion of light

Antenna: 2 X RP-SMA male

USB: For charging（max charging current: 500mA）

Card Slot: Micro SD card (64G max)

Recording Resolution: VGA / D1 / HD optional

REC sound: ON / OFF

Recording Section: OFF / 3min / 5min / 10min

Resolution: 30FPS

Compress Format: MJPEG

Video Format: AVI

Language: EN/CN

Power: DC5V / 2A（USB）

Battery: Built-in 3.7V / 2000mAh Lipo Battery

DVR ON - 2.5hour | DVR OFF - 3.5hour"

Size: 180mm * 140mm * 84mm

Weight: 393g
